Send Email To USProduct Description
Made from hot-dipped galvanized steel or stainless steel material, steel grating is widely used for platforms in factories, workshops, mines, ports and warehouses, featuring beautiful appearance, convenient installation, durable, high-anti-corrosion performance, and high load-bearing capacity.
| Location | Recommended Models | Description |
General Inspection Platform | G303/30/100SG | Welded Serrated Grating, 30x3mm, 30/100 pitch, HDG. |

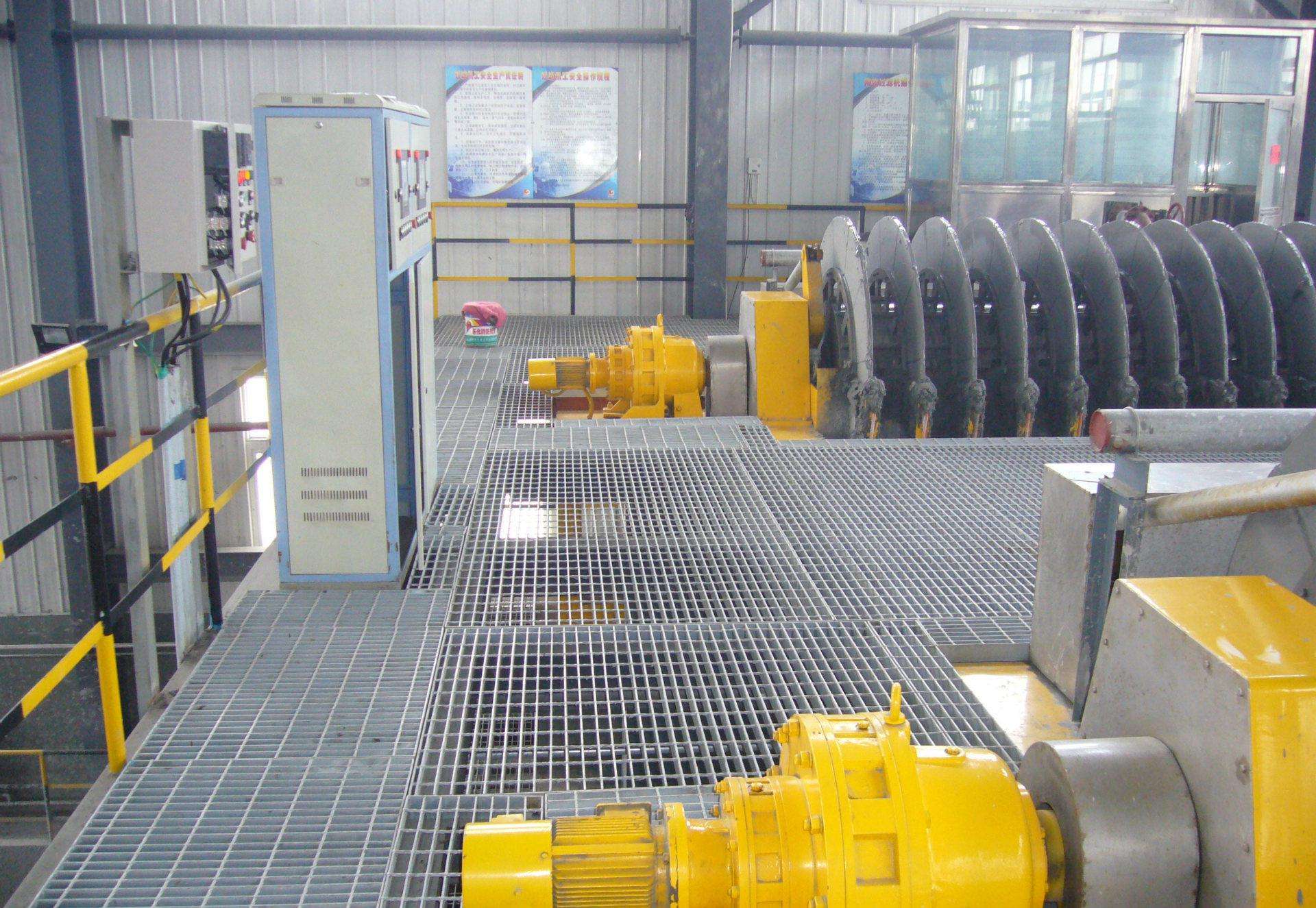

Equipment Operation Platform | G325/30/100SG | Heavy Duty Serrated Grating, 32x5mm, HDG. |
| Stair Tread | G255/30/100SG | Stair Treads with Checkered Nosing, Serrated. |
Highly Corrosive Zone | 316L Material | Stainless Steel 316L Serrated Grating (No Galvanizing needed). |
| Application | Petroleum Refinery, Power Generation Plant, Wastewater Treatment Plant, Metallurgy & Steel Mill, Ports, Shipyards, Offshore Platforms,Food & Beverage Plant, etc. | |
| Specification | Material: Hot-dipped Galvanized Steel or Stainless Steel Type: Welded Steel Grating,Press-Locked Grating,Swage-Locked Grating Surface: Serrated, Plain Bearing Bar Size: Customizable Bearing Bar Thickness: Customizable Cross Bar Size: Customizable Cross Bar Pitch: Customizable | |
Note:
Bearing bar width & thickness: unit mm
1.Bearing bar center pitch: unit mm
2. Cross bar center pitch: unit mm
3. Steel Grating Structure:
W= welded steel grating
P= press-locked steel grating
4. Bearing Bar Type:
F= rectangular bearing bar;
I= I-shaped steel;
S= serrated bearing bar
5. Surface Treatment:
G= hot-dip galvanizing;
U= no surface treatment

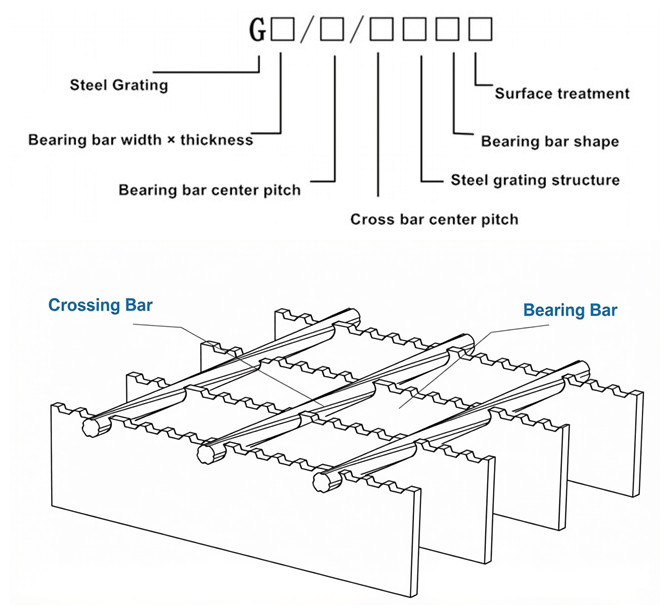

Specification：
Format: G bearing bar width x thickness/ bearing bar center pitch/ cross bar center pitch/ steel grating structure/bearing bar shape/ surface treatment
For Example:
bearing bar width 40mm,thick 5mm, bearing bar center pitch 30mm, cross bar center pitch 100mm, structure is welded steel grating, no surface treatment, marked as G405/30/100U
