Thermal Insulation Pins

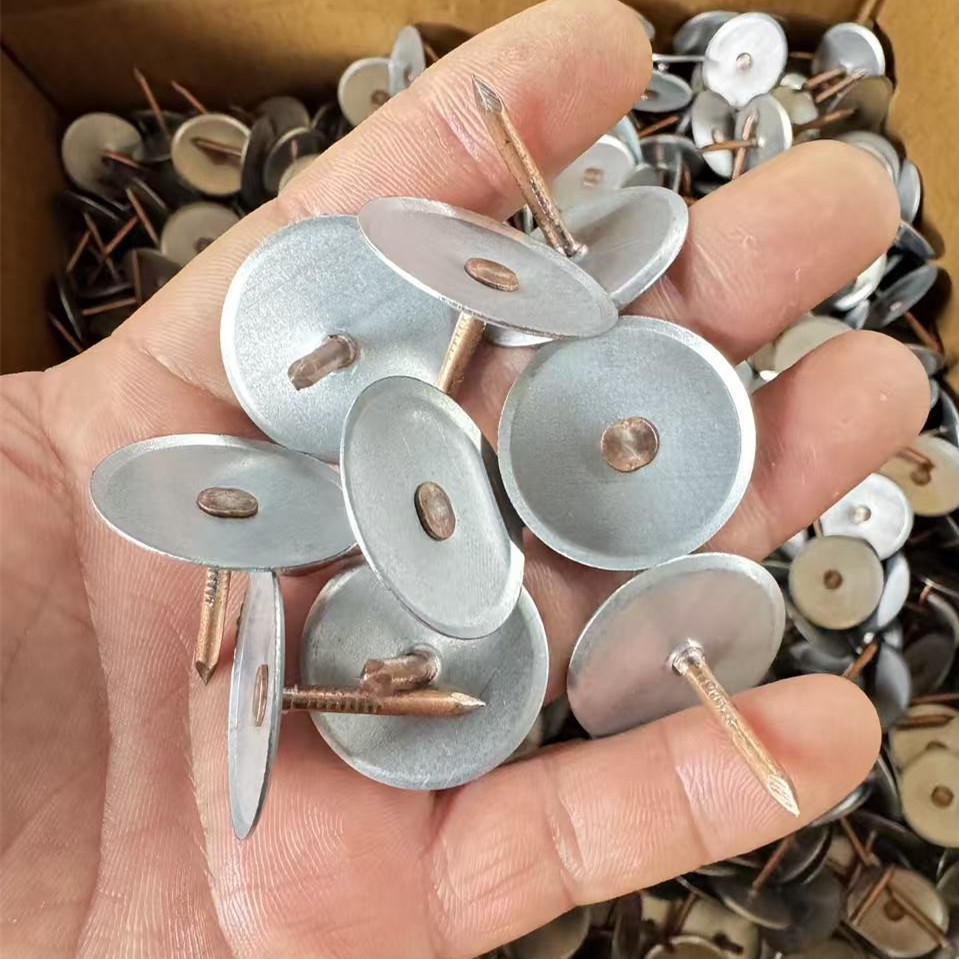

Cup Head CD Weld Pins for HVAC Duct Wrap & Fiberglass Insulation

Product Overview:

When it comes to securing fiberglass insulation and duct wrap in commercial and industrial HVAC systems, speed and reliability are paramount. Our Cup Head CD Weld Pins are specifically engineered for this purpose, offering a robust, permanent fastening solution that combines the rapid installation of Capacitor Discharge (CD) welding with a uniquely designed cup head. Perfect for HVAC contractors and fabricators, these pins provide exceptional holding power for duct liners, external wrap, and acoustic panels, ensuring your insulation stays firmly in place for the lifetime of the system.

Specifications:

Item: Cup Head Weld Pins For HVAC Duct Insulation

Material: Galvanized Steel Or Stainless Steel

Base Size: 0.5x30mm

Nail Dia: 2.7mm, 3.0mm, 3.4mm

Nail Length: 25mm, 30mm, 38mm, 50mm, 63mm, 75mm, 100mm, 125mm, 132mm etc.

Key Features & Benefits:

• Innovative Cup Head Design: The oversized, cupped head provides a significantly larger bearing surface compared to standard CD pins. This design effectively prevents the pin from pulling through soft fiberglass insulation or duct liner. It also perfectly seats a self-locking washer, creating a flush, secure hold that won't tear the insulation facing.

• Lightning-Fast CD Welding: Utilizing capacitor discharge technology, these pins can be welded to sheet metal ducts in milliseconds using a standard CD stud welding gun. No pre-drilling, no cleanup, and no access to the reverse side required—drastically reducing labor time on large-scale projects.

• Strong, Vibration-Resistant Bond: The CD weld creates a permanent metallurgical bond with the duct surface. Unlike adhesives or screws, these pins won't loosen due to vibration from HVAC fans or thermal expansion and contraction, ensuring long-term stability.

• Premium Material Options: Available in Galvanized Steel (cost-effective, corrosion-resistant for indoor use) and Stainless Steel 304/316 (for high-humidity, coastal, or food-grade environments). Both options ensure a long service life without rust staining.

• Clean & Professional Installation: The cup head design eliminates the risk of sharp pin ends protruding through the insulation surface, providing a safer, more professional finish. It also minimizes thermal bridging for better energy efficiency.




Typical Applications:

• HVAC Duct Wrap: Securing external fiberglass or foam insulation blankets to sheet metal ducts in commercial buildings.

• Fiberglass Duct Liner: Fastening internal acoustic and thermal liner boards to duct interiors for noise reduction and temperature control.

• Air Handling Units (AHUs): Insulating equipment housings, plenums, and fan compartments.

• Industrial Ventilation: Fixing high-temperature or acoustic insulation to exhaust ducts and process piping.

• Refrigeration & Cold Storage: Anchoring insulation to chilled water pipes and cold room panels.




Why Partner With Us?

As a dedicated manufacturer, we produce high-quality Cup Head CD Weld Pins with strict quality control over pin straightness, head dimensions, and weld tip geometry. We offer factory-direct pricing, flexible customization (pin length, diameter, material grade), and free samples for weld testing. Our pins are compatible with all major brands of CD weld guns, ensuring a seamless fit into your existing workflow.

Contact us today to request a free sample, verify compatibility with your welding equipment, or get a competitive quote for your next bulk order!
