Serrated Steel Bar Grating

Serrated Steel Bar Grating also could be called Serrated Welded Grating. With serrated notches stamped along one side of the load-bearing bars, it's with superior anti-skid performance. Serrated Steel Grating is widely used in industrial building platforms, stair tread, walkways, etc.. The serrations break through water and oil films, achieving a wet friction coefficient of over 0.68, representing an increase of approximately 45%–47% compared to standard flat steel grating.

Item: Serrated Steel Bar Grating

Material: Hot-dipped Galvanized Steel or Stainless Steel

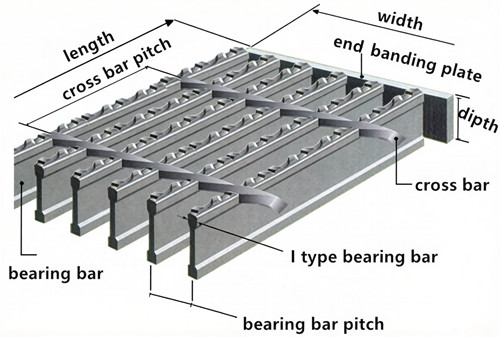

Height of bearing bar: 20 mm, 30 mm, 40 mm, 50 mm, 60 mm, 70 mm.

Thickness of bearing bar: 2 mm, 3 mm, 4 mm, 5 mm.

Cross bar: 6, 8, 10mm.

Hole Size: 30x100mm, 30x50mm etc.
