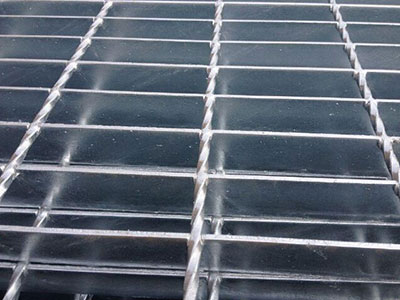

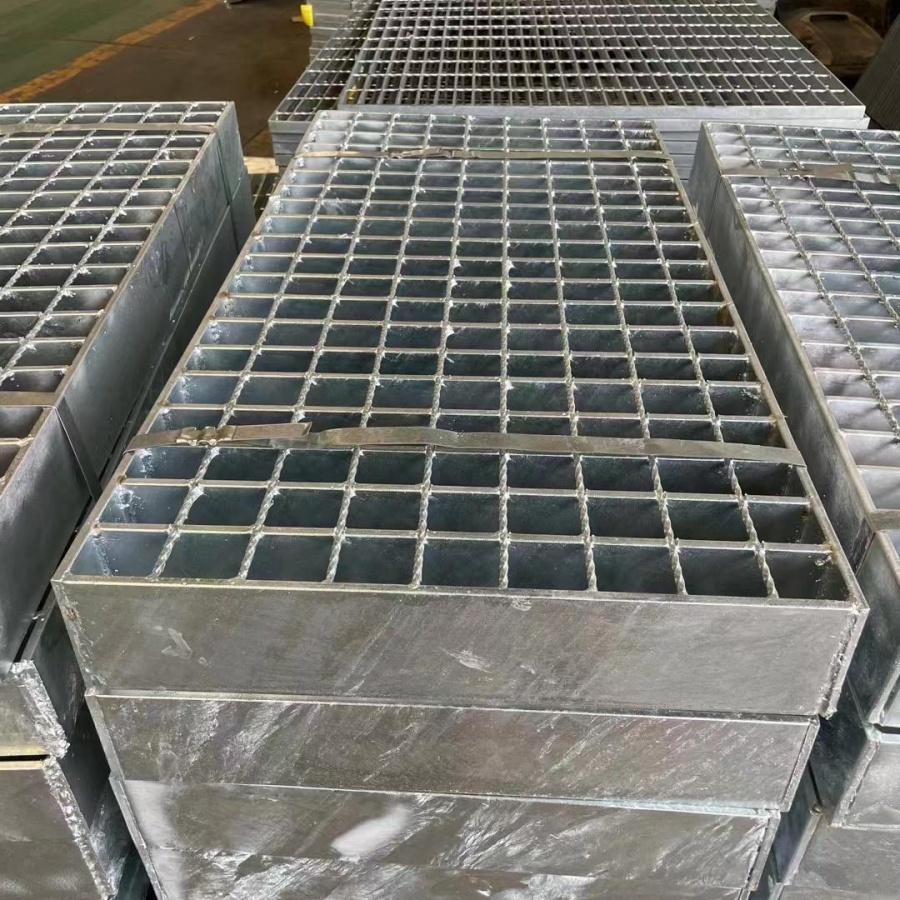

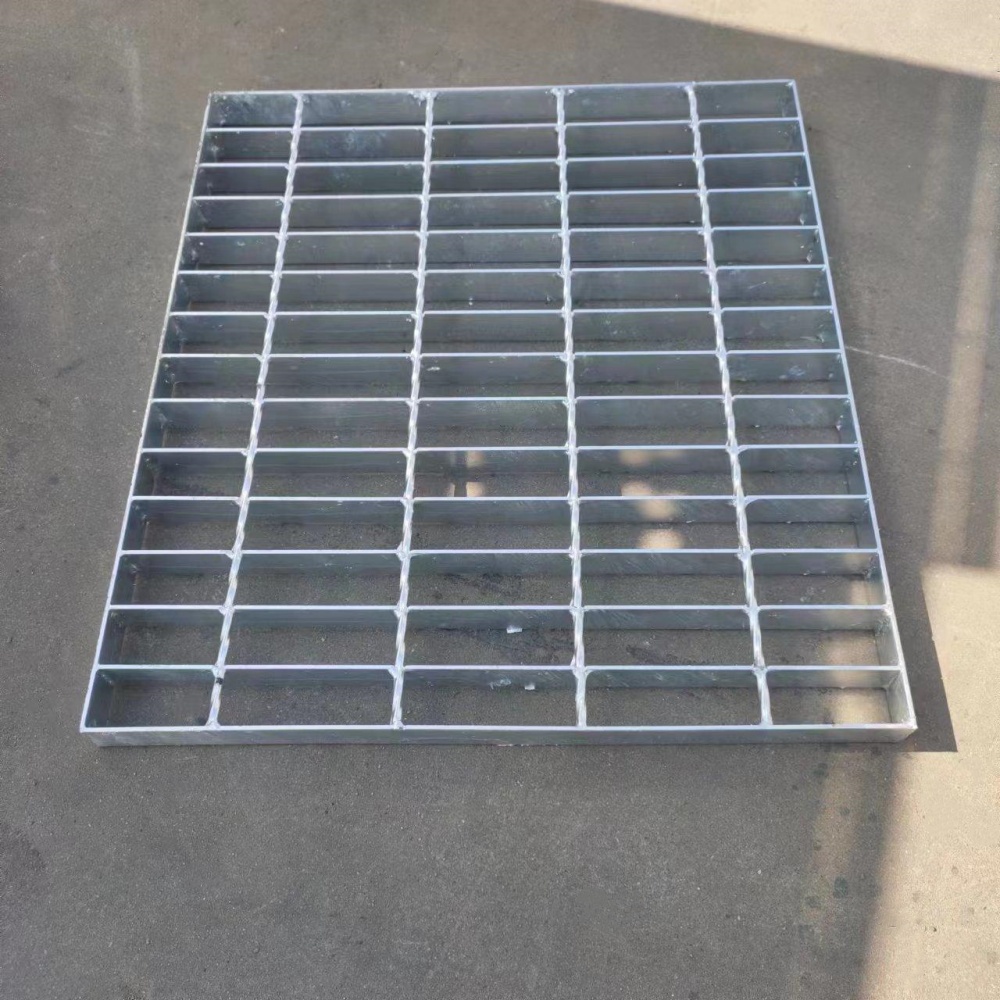

Welded Steel Grating
Welded Steel Grating is the most popular type of steel gratings.
It is manufactured by welding twisted square cross bars and rectangular cross-section bearing bars together using high-pressure electric fusion welding.
This process creates a rugged, one-piece panel that provides excellent lateral stiffness, superior load-bearing capacity, and easy installation.
Welded Steel Grating is widely used as trench covers, stair treads, platforms etc. With nearly one hundred specifications, our steel gratings are widely applied across various sectors, including highways, petrochemicals, chemical processing, ports, metallurgy, power generation, papermaking, steel construction, building materials, municipal engineering, petroleum, wastewater treatment, general industrial plants, and urban development.
| Item: | Welded Steel Grating |
| Material: | Hot-dipped Galvanized Steel or Stainless Steel |

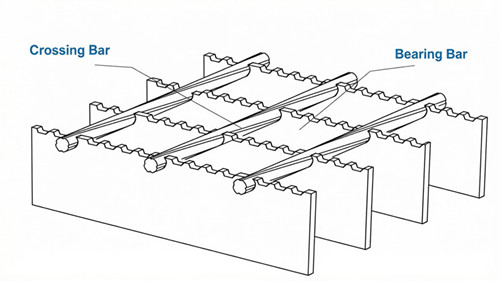

| Structure: | Bearing Bar/ Cross Bar / |
| Surface: | Serrated Surface (Serrated Type) / Plain Surface |
| Bearing Bar Size: | Light Duty / Walkway- 20×3、25×3、25×5 Standard Duty- 30×3、30×5、32×3、32×5、40×3、40×5 Heavy Duty Platform- 50×5、50×6、60×5、65×5 |
| Bearing Bar Pitch: | 30mm, 40mm, 60mm etc. |
| Cross Bar Size: | 6mm, 8mm, 10mm etc. |
| Cross Bar Pitch: | 50mm, 100mm etc. |
| Grating Width: | 600mm, 800mm, 1000mm, 1200mm etc. |
| Grating Length: | 1000～6000mm |
| Application: | Walkways / Catwalks Working Platforms / Operating Floors Stair Treads / Stair Steps Mezzanine Flooring Machine Enclosures / Equipment Guarding Loading Racks / Storage Racks Trench Covers / Drainage Grates Manhole Covers Highway & Airport Apron Gratings |
